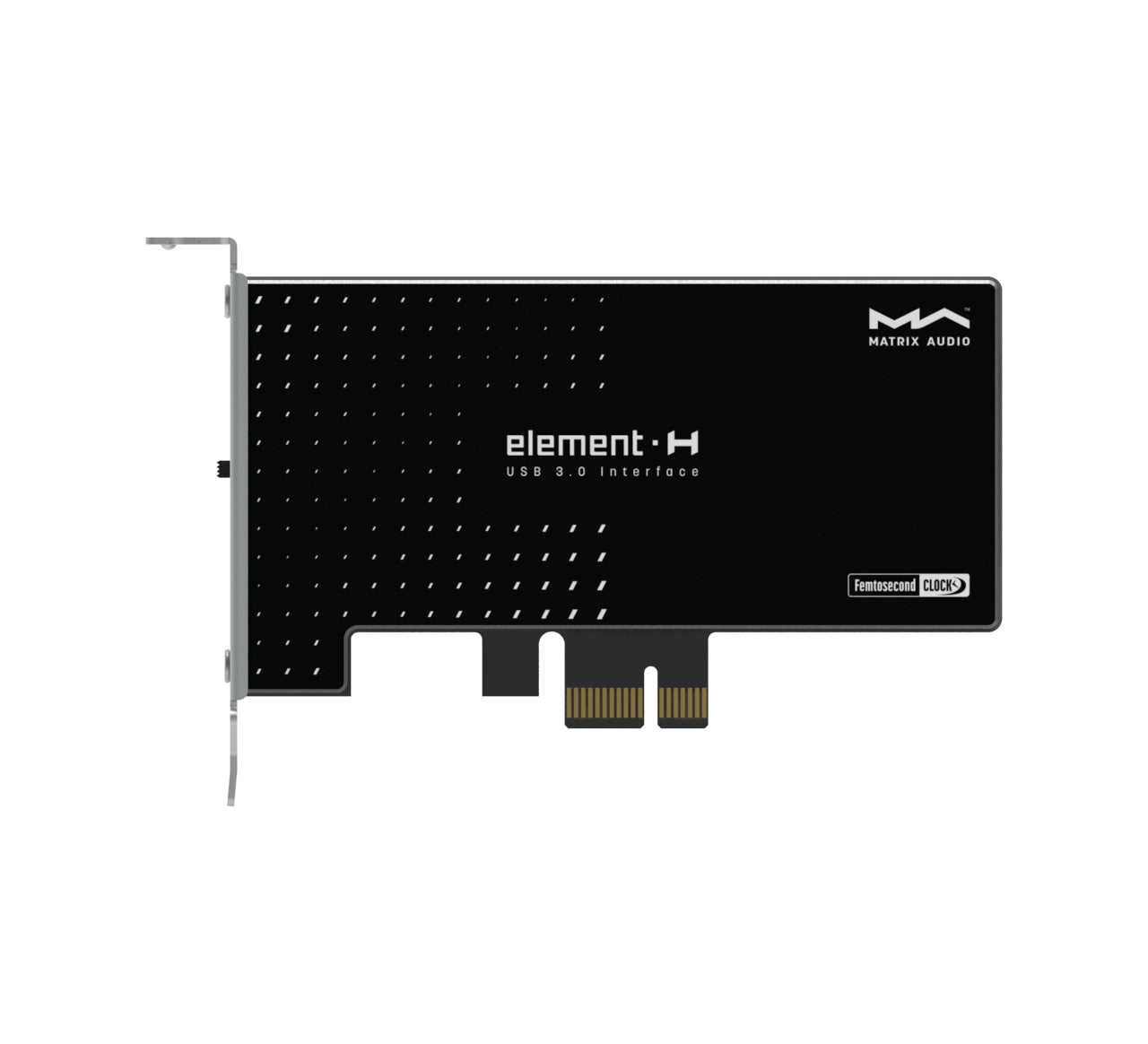

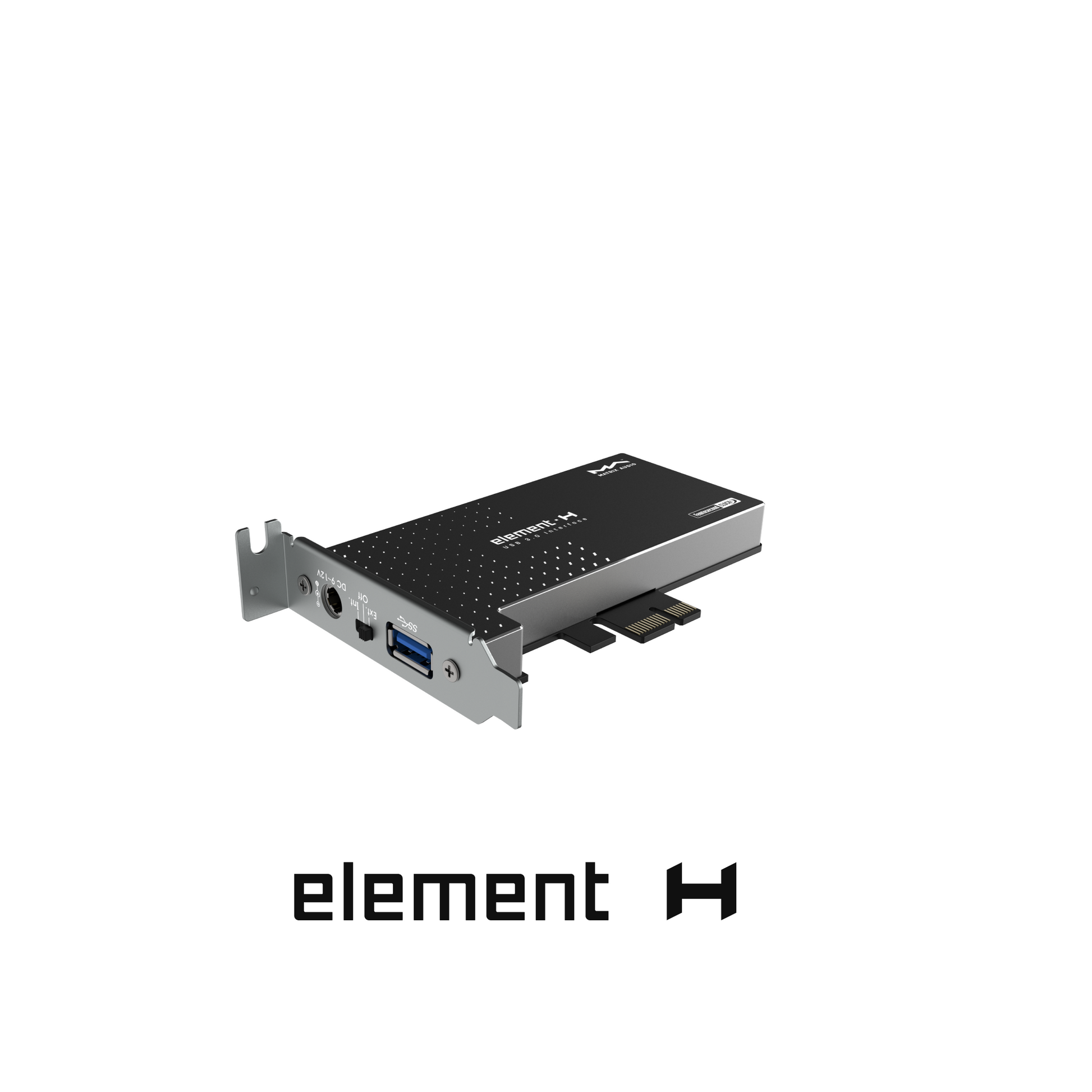

Matrix Audio Element H

Matrix Audio Element H

Regular price HK$1,880.00
Regular price Sale price HK$1,880.00
Sale Sold out

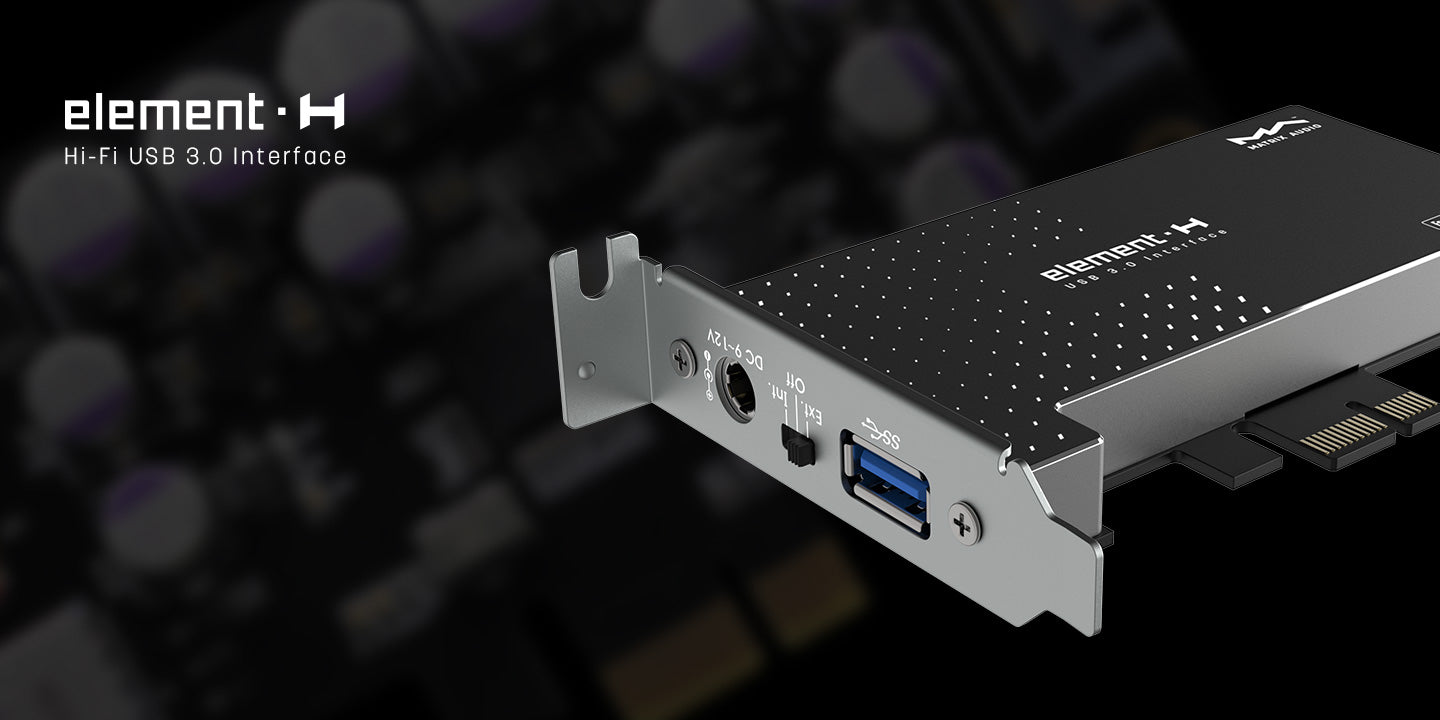

Born for Hi-Fi
Element H USB卡是專為提升電腦 USB 品質而生,從數據傳輸質量及電源低噪水平兩方面提升電腦 USB 的品質,令電腦更加適應 Hi-Fi 傳輸的高標準要求,從信號的源頭帶來彻底的改變。

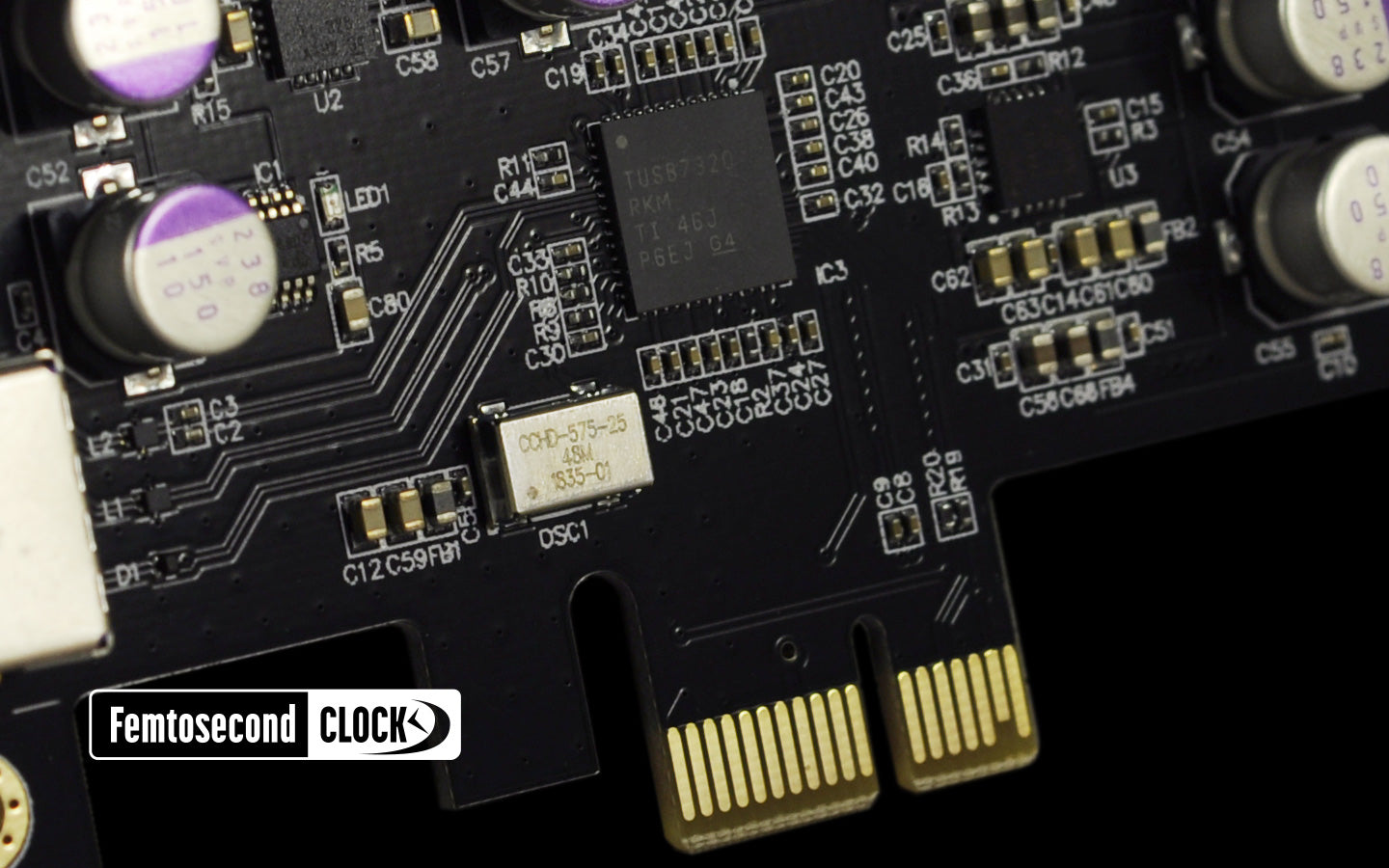

飛秒時鐘
Element H 使用美國德州儀器公司的USB3.0晶片, 配合 Cyrstek CCHD-575 超低相噪簿飛秒時鐘為USB開拓獨立的傳輸通道直接從PCI-E傳輸避開主板上的USB控制避免與其他USB插口共享通道

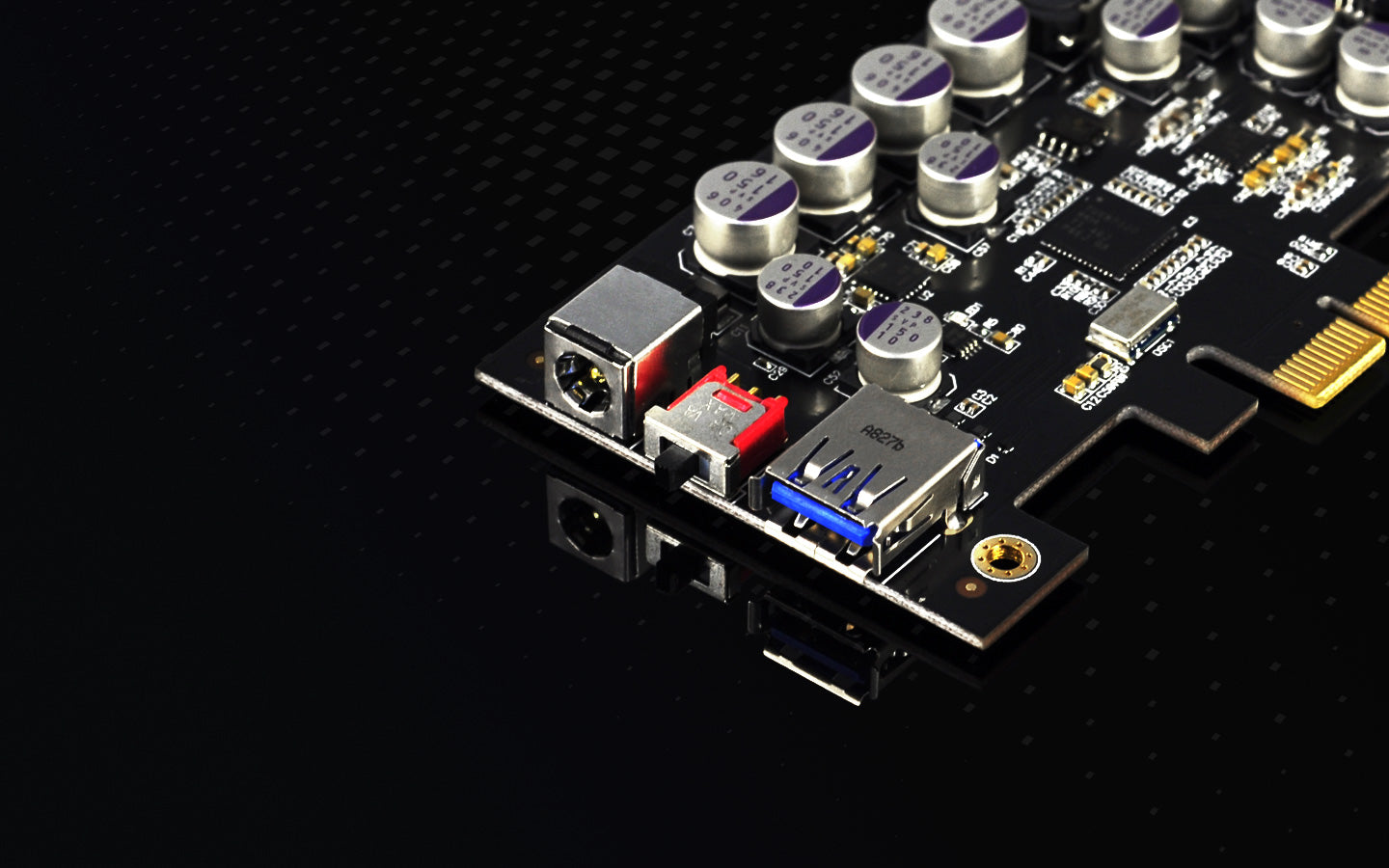

高品質供電
Element H 使用了多重濾波作USB供電而及使用了噪聲更低至6μVRMS的大電流LDO晶片和固態電容就算使用內部供電也可有效濾除PC開關制所產生的高頻噪聲而USB可向外最高提供5V 1.5A的供電而且具有過載及短路的自動檢測功能

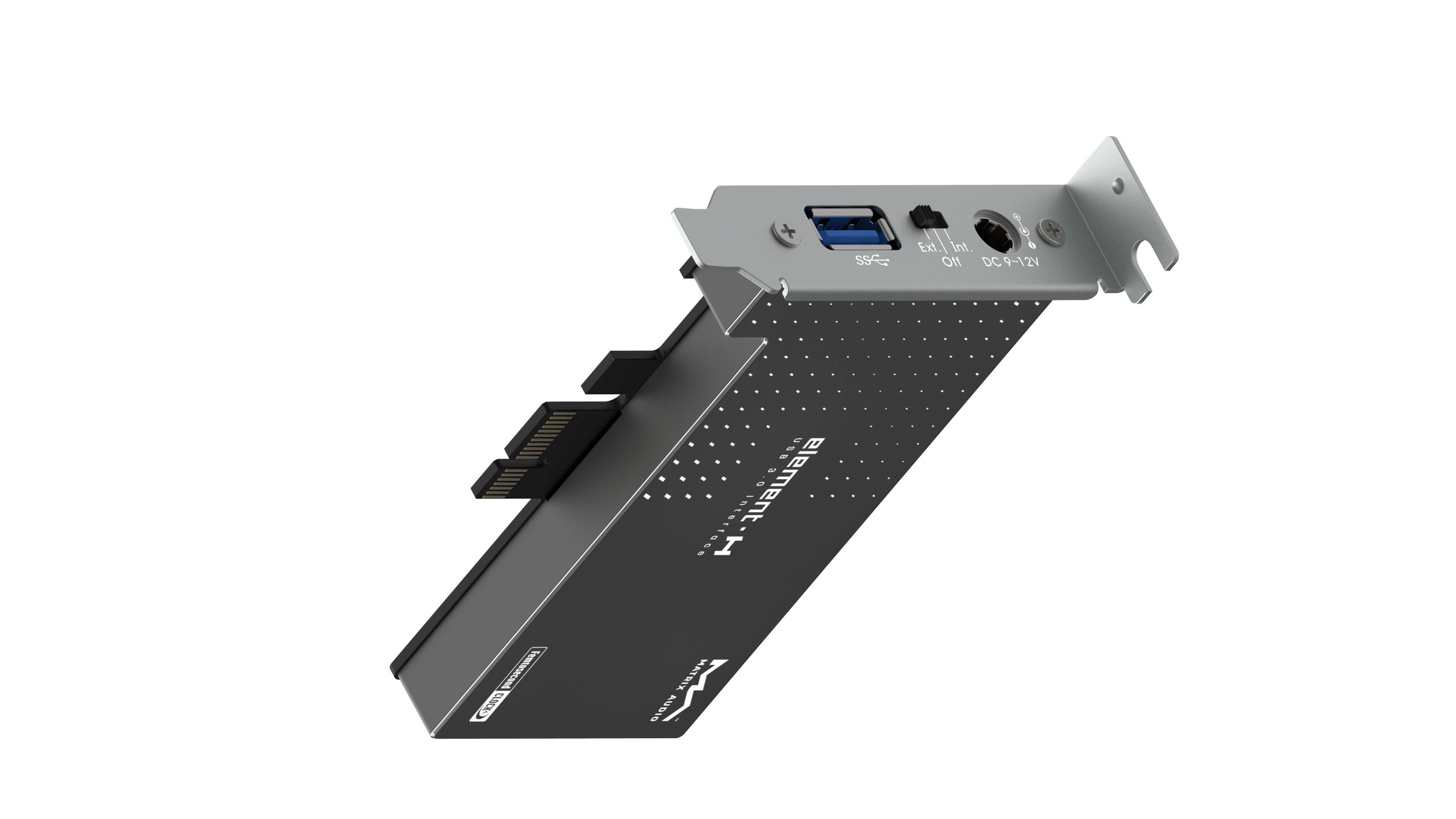

支持外部供電
Element H 有兩種供電方式可選擇使用可選擇使用內部電源供電或外接DC的電源線作供電。對於不需要USB供電的設備也可關閉USB供電

極高性能 & 嚴格電路設計
Element H 使用4層PCB 設計嚴格按照高速電路的設計符合國差分對際阻抗標準和線路的要求。CNC鋁合金外殼覆蓋整張個部有效屏蔽來自電腦機箱內的一切干擾更同時兼顧散熱的作用

USB Port
USB 3.0-Compliant xHCI Host Controller
PCIe x1 Gen2 Interface
One downstream port
Driver Installation
Drivers will be installed automatically on Windows 8/8.1/10 system, or you can download it from the product page manually.
USB power supply output
MAX 5V/1500mA
External power supply
DC 9~12V,≥1200mA

Power supply port
outer diameter 5.5mm
inner diameter 2.1mm (+ for inner, - for outer)
NOTE: Please do not connect to the power supply with a voltage above 12V, or will cause damage. Some USB devices do not use the power supply from USB port, but it does not mean the bus power supply could be unplugged, or it will cause the USB devices to malfunction. Please disconnect your USB device before you change the power supply mode for element H. If you switch the power supply mode when device is connected, the USB bus power supply surge may cause the device to malfunction.

Dimensions
114mm×64mm×23mm (Includes protruding part)

What's in the Box.
4 pin D-type to SATA 15 pin adapter cable (×1)
Standard Bracket (×1)
Half-height Bracket (×1)
